YCHAIN HD610H2U USB3.0 HD Video Camera
Key Features
l Superb high-definition image experience
TheHD610H2U employshigh quality CMOS sensor, frame rate up to 1080p60/50, providing super smooth video, makes full high definition comes true.
l Lifelike video image
Based on the unique Iridix exposure dynamic control algorithm, the HD610H2U delivering detailed and vivid images.
l A variety of white balance modes selection - the perfect color experience
A variety of white balance modes: automatic white balance, automatic tracking white balance, etc., to meet the requirements of users in different environments.
l 12x optical zoom
The HD610H2U comes with a 12x optical zoom. High performance lens with fast and stable auto focus capability. With high precision PTZ position, it offers ease of use for the user.
l Optional upside down installation
HD610H2U supports upside down installation. Also the installation mode can be changed via OSD menu setting or remote controller or serial command.
l RS-232C remote control (VISCA protocol)
All camera settings and pan/tilt/zoom control functions can be performed remotely at high communication speeds via the RS-232C interface. By using RS232 cascading interface, two or more cameras can be connected synchronously.
l Wide-range, Quiet and Quick PTZ Mechanism
By adopting step driving motor mechanism, the HD610H2U briadcast camera is extremely quiet and moves smoothly and very quickly to designated position, also covers a wide shooting range.

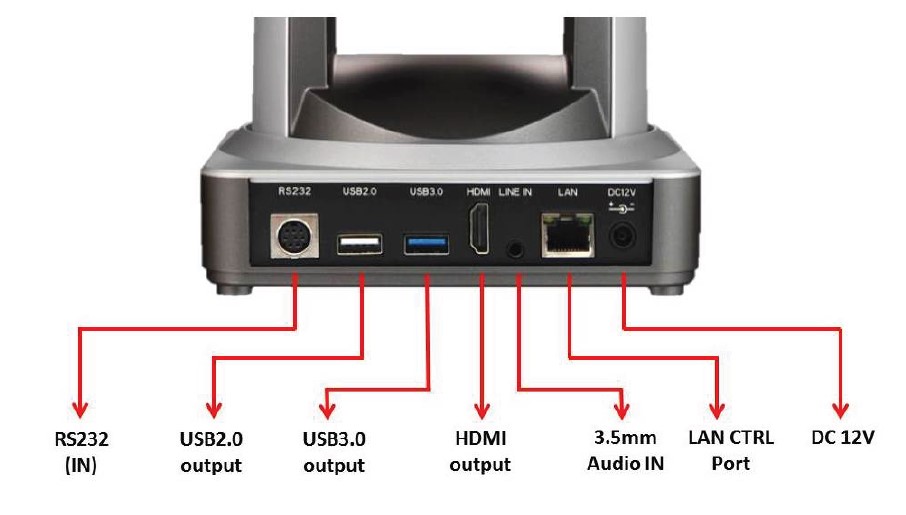

Back Panel
Technical Specification
|
Model |
YCHAIN HD610H2U |
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|
Pixels |
16: 9 2,070,000 effective pixel |
|
Video signal |
1080p60/50/30/25、720p60/50/30/25 |
|
Zoom |
12x optical zoom, f＝4.1～49.2mm |
|
View angle |
70.28°(far)、6.57°(near) |
|
Minimum lux |
0.5Lux |
|
White balance |
Auto/ Manual |
|
Focus |
Auto/ Manual |
|
Aperture |
Auto/ Manual |
|
Electronic shutter |
Auto/ Manual |
|
BLC |
On/Off |
|
S/R |
＞55dB |
|
Input / Output interfaces |
|
|
HD interfaces (optional ) |
USB2.0、USB3.0、HDMI |
|
Control interfaces |
8 pin mini DIN、RS232 |
|
Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400 bps |
|
General specification |
|
|
Mechanism |
Rotation Range：Pan : ±170°; Tilt : -30° ～ +90°； |
|
Manual control speed：Pan: 0.1-60°/sec; ilt: 0.1-30°/sec |
|
|
Preset control speed：Pan: 60°/sec; Tilt: 30°/sec |
|
|
Power Supply Adapter |
AC100V-AC240V |
|
Input voltage |
DC12V |
|
Consumption |
＜12W(max) |
|
Store temperature |
-10℃ to +60℃ |
|
Working temperature |
-10℃ to +50℃ |
|
Dimension （W x H x W） |
150mm×150mm×167.5mm |
|
Weight |
1.4KG |
