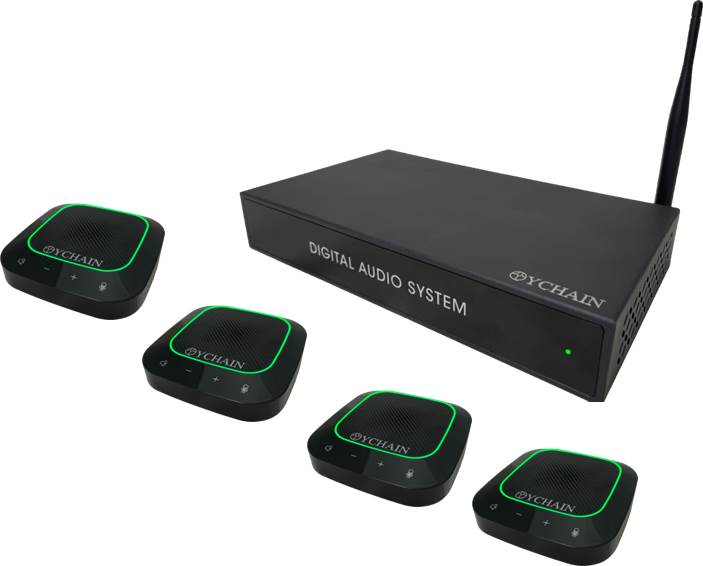

YCHAIN DCS1580WEX With 4 Mics USB 2.4G wireless cascaded omnidirectional microphone
Adopting the latest audio network voice processing technology,
including digital audio processing, dynamic noise reduction processing, industry-leading 384ms echo cancellation, full-duplex voice calls, 360° omni-directional pickup, etc.
The effective pickup radius of a single omnidirectional microphone can reach 2m.
Two-way, natural and smooth meetings can be conducted at the same time, giving users a high-quality meeting experience.
Key Features
lSupport conference communication software such Ymeetee、Skype、Zoom、Webex、Teams、Google Meet etc.
lRemovable wireless omnidirectional
l Support handheld microphone Wireless charging

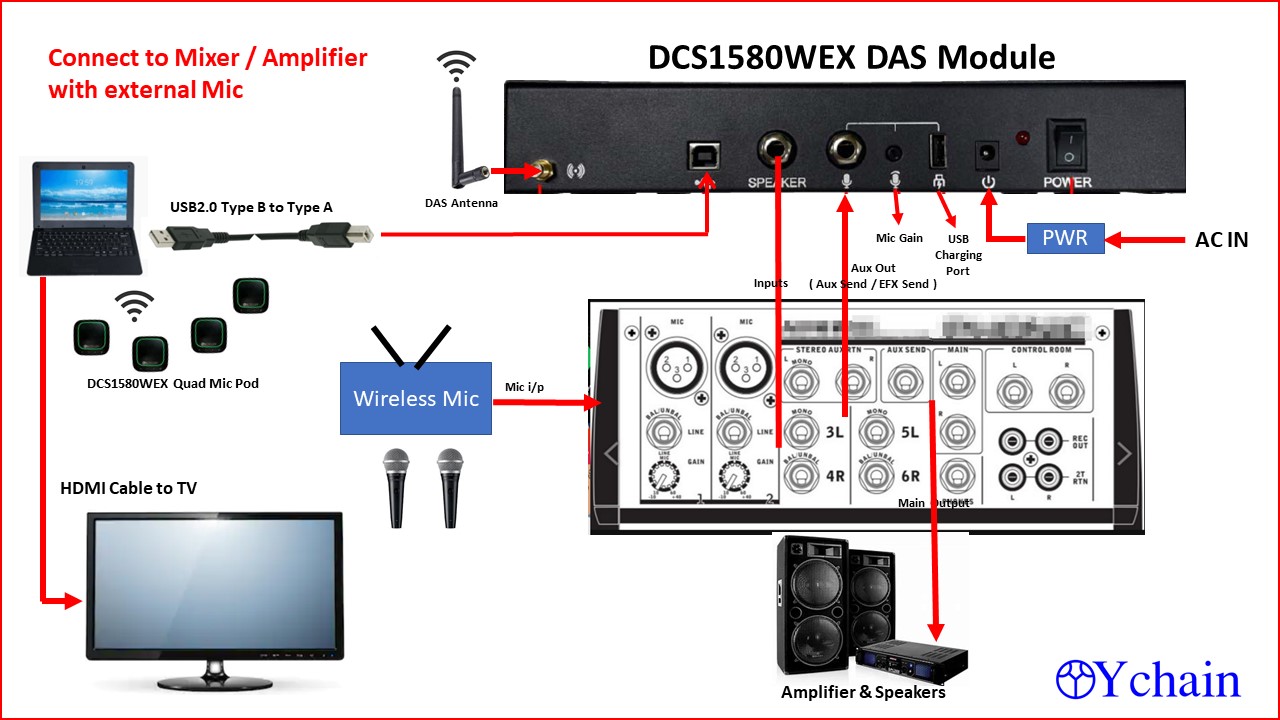

The master can be connected with active speaker interface and 4 omnidirectional microphones based on 2.4G wireless cascade.
It also supports wireless handheld microphone local amplification, which is widely used in large conferences,
it can also be used normally in just about any business, leisure and entertainment venues.
l Intelligent audio processing:
Adopting the latest audio network voice processing technology, including digital audio processing,
dynamic noise reduction processing, industry-leading 384ms echo cancellation, full-duplex voice calls, 360° omni-directional pickup, etc.
The effective pickup radius of a single omnidirectional microphone can reach 2m.
Two-way, natural and smooth meetings can be conducted at the same time, giving users a high-quality meeting experience.
Technical Specification
l Interface
-B type USB interface
-6.5mm audio jack
-6.5mm handheld microphone interface
-Handheld microphone receiver charging port
-Hand-held microphone volume adjustment knob
-Antenna interface
-DC power interface
l Wireless omnidirectional microphone
-Audio bandwidth is 100-16KHz
-Sensitivity: -38 dB 94dB SPL@1KHz
-Signal to noise ratio: 65dB 94dB SPL@1KHz, A-weight
l Audio characteristics
-Digital audio processing 384ms echo cancellation technology
-Intelligent dynamic noise reduction
-Full duplex 360° pickup range
-The effective pickup radius is 2 meters (Single omnidirectional microphone)
l Master LED light status
-Master red light is always on: under normal work
-The speaker status indicator light on master is green when ON: Under normal work
-The speaker status indicator light on master is on in red: Speaker mute
l Slave mics LED light status
-Normal work: the green light is always on
-Mute microphone: red light is always on
-Low power: the red light of the speaker flashes
-Volume adjustment: the mic green indicator flashes
-Not connected normally: the green light flashes
